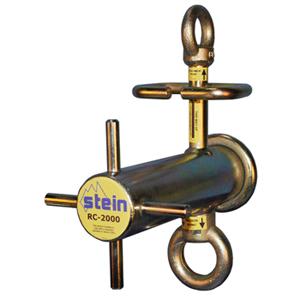

Working ropes can easily be wrapped and unwrapped without removing the RC Device from either its main anchor point or the top attachment point. The bottom anchor point has a large eye to accommodate a choked sling.
The top attachment point can be utilized for retaining the device whilst fixing the base anchor point securely and when used in this configuration slack line can be drawn from the system which reduces device free fall.
Allowing for a 4.5:1 bend ratio this device can accommodate up to 16mm rigging lines and has a Working Load Limit of 2000kg.
This device has been designed to work in conjunction with the RC-3100 pre-tension pulley.
Specifications:
Working Load Limit: 2000kg
Max Rope Size: 16mm
Weight: 6.2kg
Style: Floating
Barrel Diameter: 76mm
Length: 285mm
Width: 150mm
Height: 370mm
Finish: Zinc Plated
